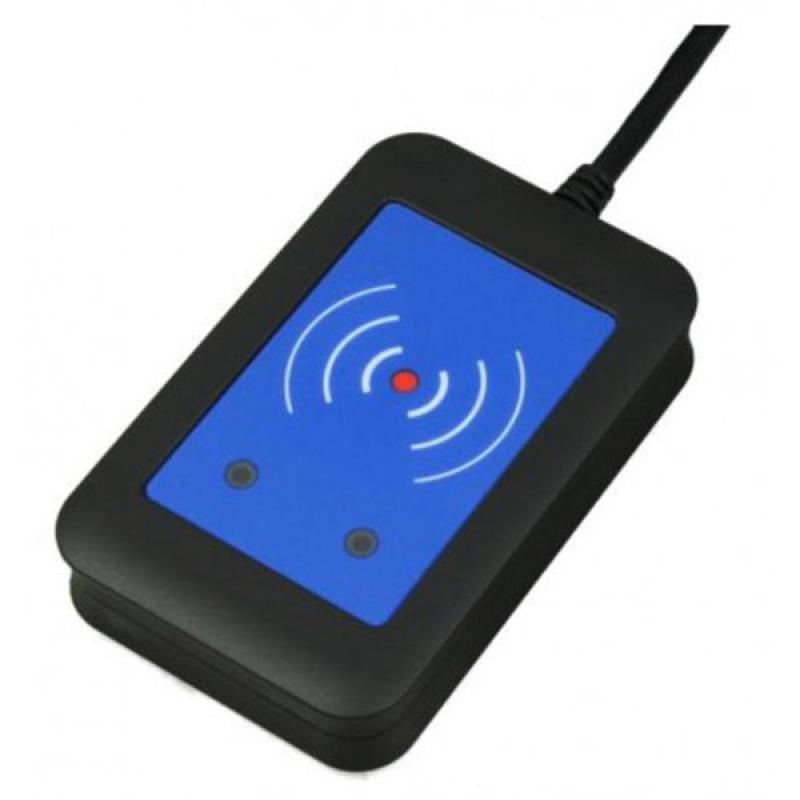

Beschreibung
Housing Material ABS UL94-V0, colour black
Frequency 125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)
Dimensions Desktop Reader: 88x56x18 mm
OEM Board: 76x49x14 mm
Power Supply 4.3 V - 5.5 V via USB or RS-232; RS-232 requires 5 V
external power supply; via
connector CNB 3.3 V +/- 5%
Desktop, Storage: -45 °C up to +75 °C
Desktop, Operating: -25 °C up to +70 °C
R/W Distance up to 100 mm (depending on environment and
transponder)
TRANSMISSION SPEED Host: USB Full speed (12 Mbit/s), RS-232 up to
115.200 baud; Air: up to 848 kbit/s
MODES OF OPERATION USB keyboard emulation – USB virtual COM port –
CCID / PC/SC 2.01
MTBF 500,000 hours
WEIGHT Approx. 20 g (without housing)
SUPPORTED TRANSPONDERS (STANDARD):
ISO14443A:
LEGIC Advant, LEGIC Prime, MIFARE Classic 1k & 4k EV11), MIFARE
Classic, MIFARE
Mini, MIFARE DESFire EV1, MIFARE DESFire EV21), MIFARE Plus S, X,
MIFARE Pro X2),
MIFARE Smart MX2), MIFARE Ultralight, MIFARE Ultralight C, MIFARE
Ultralight EV1,
NTAG2xx, PayPass2), SLE44R35, SLE66Rxx (my-d move)2)
ISO14443B:
Calypso2), CEPAS2), HID iCLASS3), Moneo2), Pico Pass3)
ISO18092 ECMA-340:
Sony FeliCa5), passive Peer-to-Peer mode - initiator, NFC Tag 2, 3,
4
ISO15693:
EM4x332), EM4x352), HID iCLASS3), HID iCLASS SE/SR3), ICODE SLI,
LEGIC Advant,
M24LR16/64, SRF55Vxx (my-d vicinity)2), Tag-it, PicoPass3)
LEGIC Prime:
LEGIC Prime
125 kHz, 134.2 kHz:
AWID, Cardax, CASI-RUSCO, Deister6), EM4100, 4102, 42007), EM4050,
4150, 4450,
4550, EM43058), FDX-B, EM4105, HITAG 19), HITAG 29), HITAG S9),
ICT8), IDTECK,
Isonas8), Keri, Miro, Nedap6), PAC, Pyramid, Q5, T5557, T5567,
T5577, TIRIS/HDX, TITAN
(EM4050), UNIQUE, ZODIAC
SUPPORTED TRANSPONDERS
(VERSION P)
All Standard Transponder, G-Prox6), HID DuoProx II, HID ISO Prox
II, HID Micro Prox, HID
ProxKey III, HID Prox, HID Prox II, Indala, ioProx, Nexwatch
PERIPHERAL INTERFACES USB, RS232, 2 x serial (logic level 3.3 V,
CMOS 5 V tolerant), I²C, 2 GPIOs, Clock/Data,
Wiegand, 1-Wire8)
OS SUPPORT Windows XP, Vista, Embedded CE8), 7 (32-/64-bit), 8,
8.1, 10, Linux, Android8), iOS8),
MAC OS X8)
CERTIFICATIONS RoHS-II compliant, CE, FCC, RED
Artikelnummer(n) des Herstellers
T4DT-BB2BEL + HKSI-B
